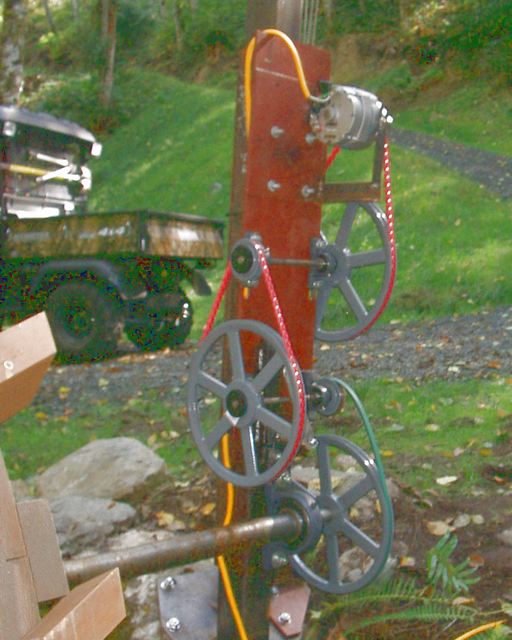

speed up gearing

speed up gearing

The bottom green belt has a cam lever unseen in this photo which can tighten or loosen the green belt allowing the system to be disengauged. The use of pullies allows easy ratio changes allowing the customer to fine tune the altinator's speed vs the wheels power output by simply changing the pully size.
